ExhibitPlus inside

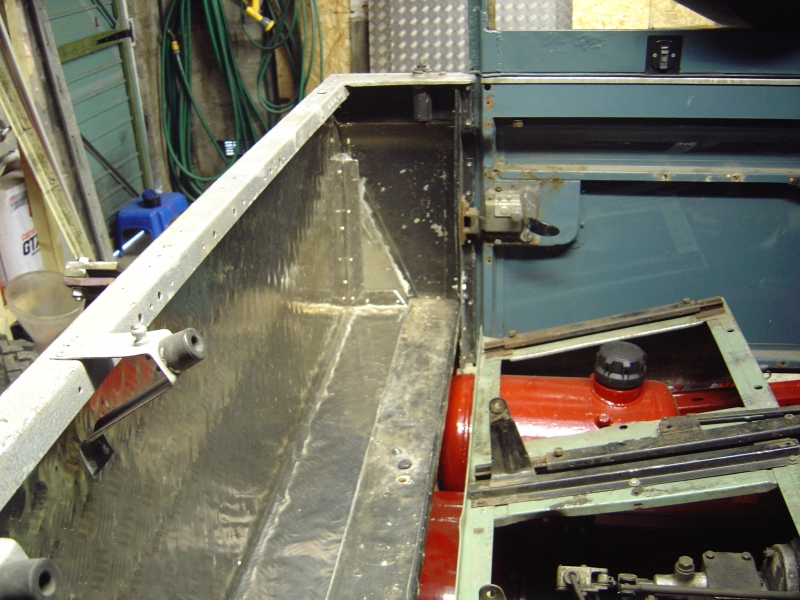

here you can see the new panel and the extra space it has provided (compared with the diagonal line of the old panel) which is needed to house the hydraulic spool valves later on
